On August 22, 2018, EMA and ti will jointly release am57x series AI & industrial application scheme in Pearl 8 Hall of Guangzhou emerald Crown Holiday Hotel.

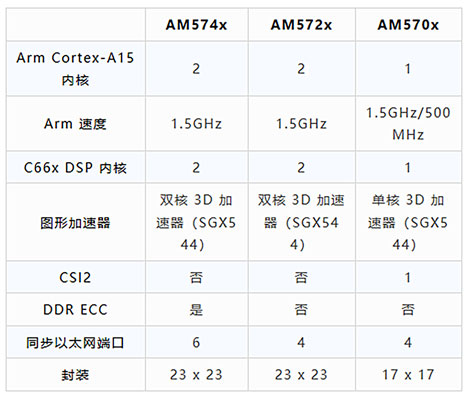

Am57x processor adopts arm + DSP heterogeneous processor, integrates arm cortex-a15 @ 500m-1ghz processor and c66x ™ floating point VLIW DSP @ 750MHz, two arm cortex-m4 coprocessors, four pru-icss supporting multiple industrial protocols, etc. Am57x processor family includes am5706, am5708, am5718, am5726, am5728, am5748 and other processors.

Product preview on site



As a global technical partner of Ti, EMA provides am57x with a series of complete SOM core boards, development board kits, industrial application boards, and corresponding software development SDK packages and technical support services.

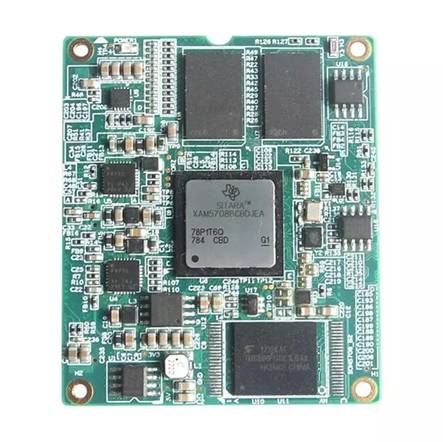

I. som5708 core board

1. Am5708 industrial core board, integrated with costex-a15 + c66x DSP;

2. Support Linux 4.9 + Qt5 + DSP RTOS + arm and DSP communication mechanism;

3. Application in motion control system, machine vision processing system, image recognition system, audio analysis system, video analysis system and other industry applications;

4. Upgrade and replace dm3730, OMAP-L138, dm8148 and c66xdsp.

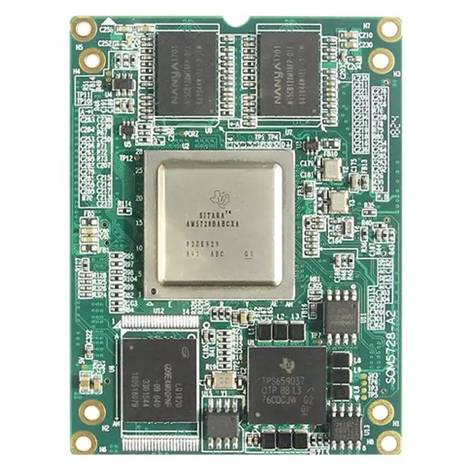

II. Som5728 core board

1. Am5728 industrial core board, integrated with 2xcoterx-a15 + 2xc66x DSP

2. Support Linux 4.9 + Qt5 + DSP RTOS + arm and DSP communication mechanism

3. Application in motion control system, machine vision processing system, image recognition system, audio analysis system, video analysis system and other industry applications;

4. Upgrade and replace dm8148, dm8168 and c66xdsp applications.

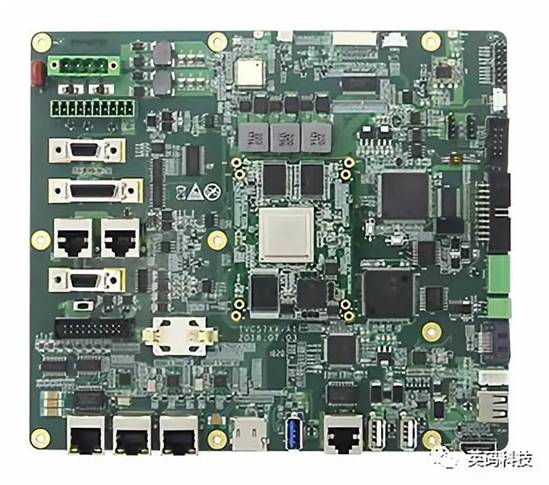

III. ivc57xx Machine Vision & motion control board

1. The main board adopts the core board + bottom board structure, and the configuration changes as needed;

2. Arm + DSP + FPGA divide the work to deal with display, operation and control;

3. Support traditional pulse control + Ethernet and other industrial bus control;

4. Provide ECNC motion control SDK to easily realize industrial control products;

5. It can be applied to machine vision control, machining center, precision carving machine system, etc.



1. The main board adopts the core board + bottom board structure, and the configuration changes as needed;

2. Arm processing UI and business logic + DSP processing data operation analysis;

3. Support multi-channel mcasp audio input and camera video input analysis;

4. Provide DSP application algorithm development SDK to easily realize data analysis algorithm;

5. It can be used in high-end audio and video processing, intelligent robot and other AI applications.



V. via5708 on board information analysis main board

1. Main board of vehicle specification level information analysis, which can analyze audio and video data;

2. Integrated video input and output interface and multiple communication bus interfaces;

3. Adopt te vehicle gauge level connector to support can on-board communication;

4. Provide DSP algorithm development SDK to easily realize data analysis algorithm;

5. Video analysis system for track, bus, road and other places.

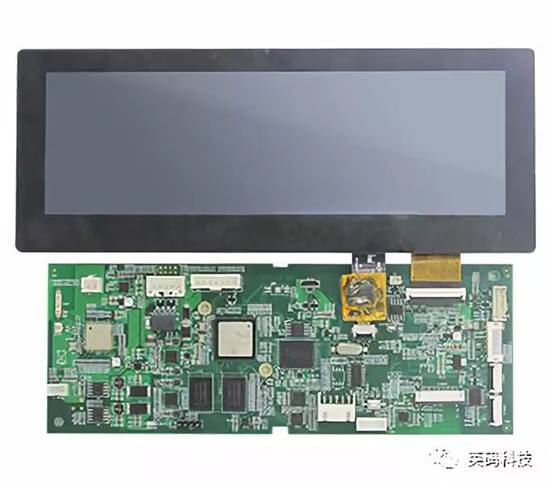

Vi. hmi5708 high end HMI main board
